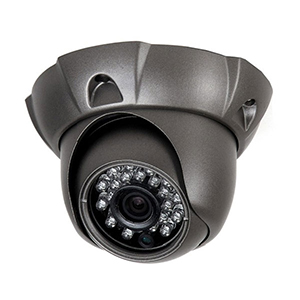

25M 24Leds Vandel-proof Metal Dome Cameras
Key Features:
◆20-25M IR Distance
◆Smart IR
◆24pcs Ø5mm IR LEDs
◆3.6mm Fixed Lens
◆Color: Gray/ white
Specification:
|
Model |
KH-W100D2 |
KH-W101D2 |
KH-W131D2 |
KH-W201D2 |
KH-W202D2 |
|
Image Sensor |
1/4" CMOS |
1/4" CMOS LUX |
1/3" SONY LUX |
1/2.5" CMOS LUX |
1/2.5" SONY LUX |
|
Effective Pixels |
1.0 MP |
1.0 MP |
1.3 MP |
2.0 MP |
2.0 MP |
|
Image Resolution |
1280X720P |
1280X720P |
1280x960P |
1280X1080P |
1280X1080P |
|
IR LEDs |
24pcs Ø5mm IR LEDs |
||||
|
IR Distance |
20-25M |
||||
|
Lens |
3.6mm Lens, (6mm/8mm Optional) |
||||
|
Color |
Black/ White/ Grey Option |
||||
|
S/N Ratio |
>58dB |
||||
|
Shutter |
Auto/1/50(1/60)seconds to 1/100,000 seconds |
||||
|
WDR |
D-WDR |
||||
|
DNR |
2D-DNR/3D-DNR |
||||
|
Minimum illuminator |
0.01LUX/F1.2 |
0.001LUX/F1.2 |
|||
|
White Balance |
ATW/AWC-SET/Manual/AWB |
||||
|
AGC |
AUTO |
||||
|
BLC |
OFF/BLC/HSBLC |
||||
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
||||
|
synchronization System |
Internal Synchronization |
||||
|
Video Output |
AHD (1.0VP) |
||||
|
Voltage |
DC12V (9V ~ 15V) |
||||
|
Operating Environment |
-20°C~60°C / 10% ~ 95%RH ( AUTO Temperature Control Optional) |
||||
|
Dimension |
15.8cm x 5.8cm x 5.5cm |
||||
|
Weight |
0.32kg |
||||
